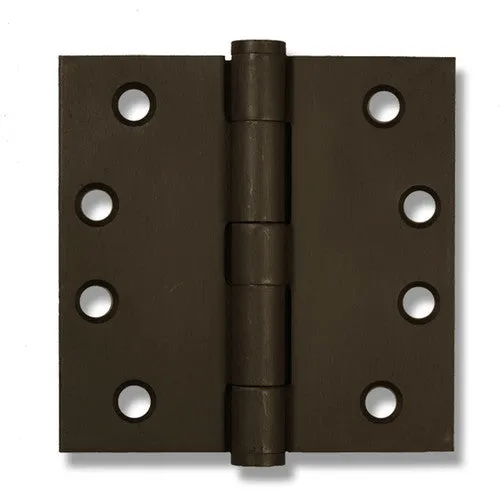

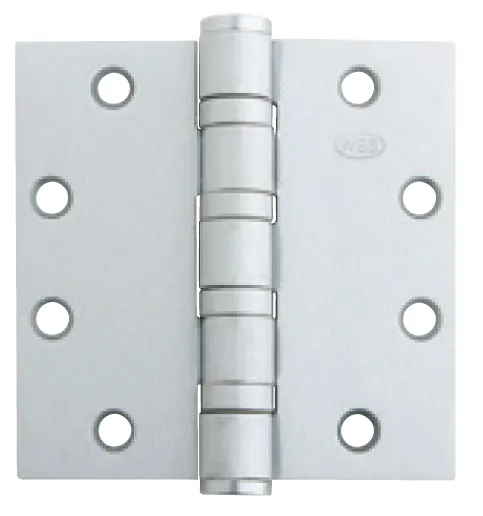

5BB1HW 5 Knuckle, ball bearing, heavy weight full mortise hinge

• ƒƒ Recommended for heavier weight doors (>150 lbs)
• ƒƒ Recommended for high frequency usage (400 cycles per day)
• ƒƒ Made with four ball bearing assemblies
• ƒƒ Recommended for use with a door closer
• ƒƒ Packed with fasteners for hollow metal and wood doors
• 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS

Certifications

• ƒƒ Certified to ANSI/BHMA A156.1 for
• performance standards
• ƒƒ Meets ANSI/BHMA 156.7 for template
• hinge dimensions
• ƒƒ UL Classified for windstorm rated
• assemblies - R37965
• ƒƒ UL Listed, 3 hour fire doors

Material substrate

• ƒƒMade from brass, 1040 steel, or 304
• series stainless steel
