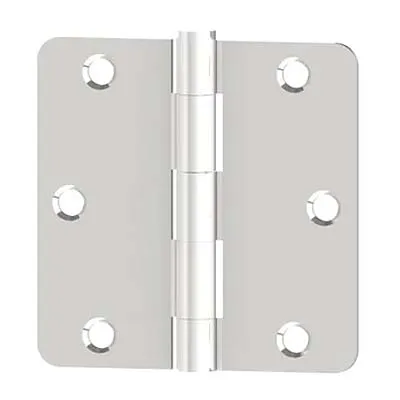

Ives 5BB1RC 14 4.5X4.0 630 5-Knuckle Ball Bearing Hinge Standard Weight, 4-1/2" x 4", Round Corners, Satin Stainless Steel
5BB1 5 Knuckle, ball bearing full mortise hinge- Recommended for medium weight doors (<150 lbs)
- Recommended for medium frequency usage (<400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Classified for windstorm rated assemblies - R37965
- UL Listed, 3-hour fire door
-
Made from brass, 1040 steel, or 304 series stainless steel
