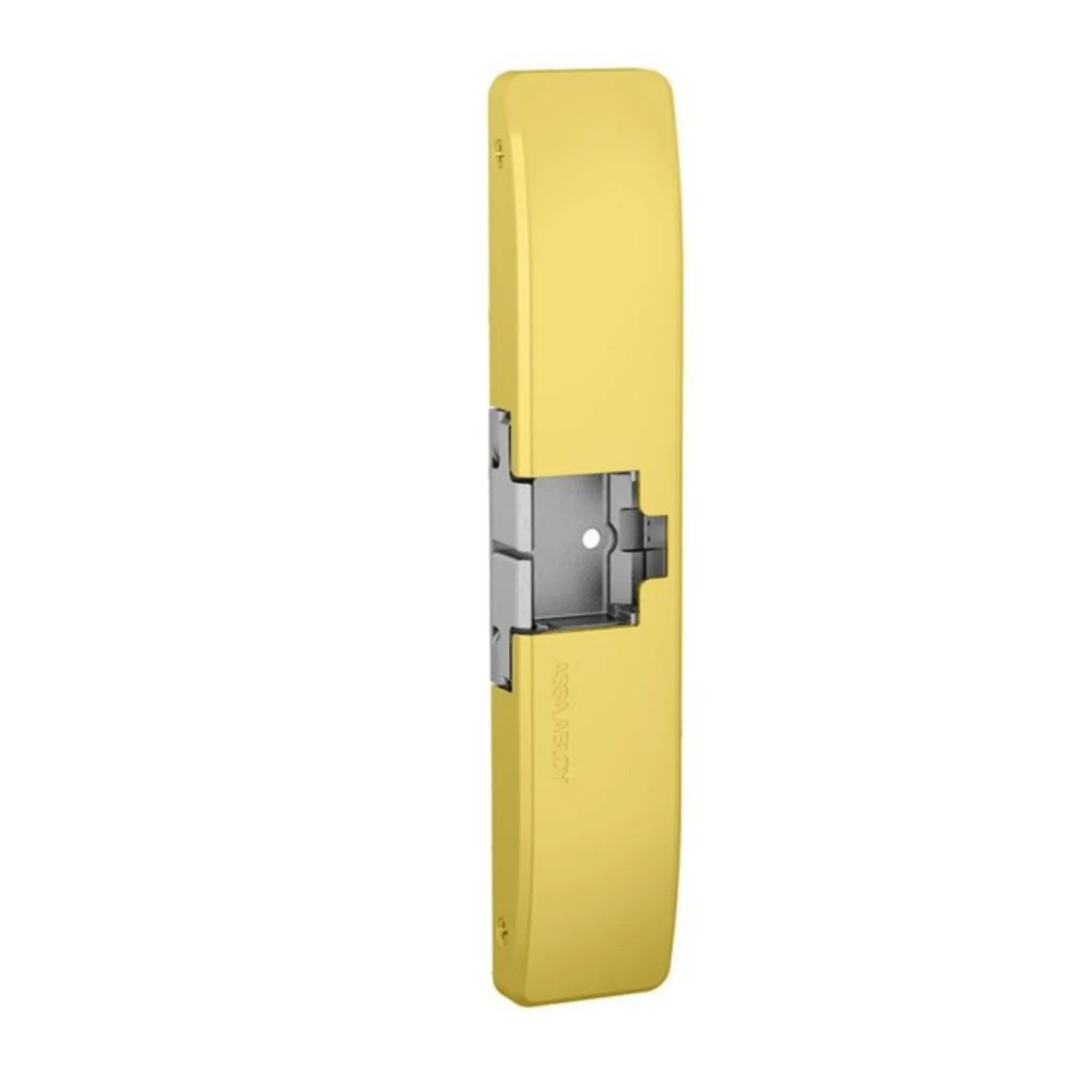

HES 9700-605-LBM Surface Mounted Electric Strike: The 9700 works with Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices.
The HES 9700 is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing. This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire rated frames.
The Stylish Windstorm Resistant, and Fire-Rated, Squarebolt Solution!
The HES 9700 Series Electric Strike is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt® and Yale SquareBolt® exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
Features
- Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
- Installs in metal and wood frames
- Wood screws not provided
- Separate base and decorative cover for easy adjustments
- Stainless steel construction
- Tamper-resistant
- Static strength 2,000 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" [19mm] Pullman latch
- Frame Application: Metal & Wood
- Finish: Bright Brass (605) finish
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL294 listed
- UL305 listed
- RoHS compliant
- Dual voltage 12/24VDC
- 450 mA at 12VDC/250 mA at 24VDC
